Product Description

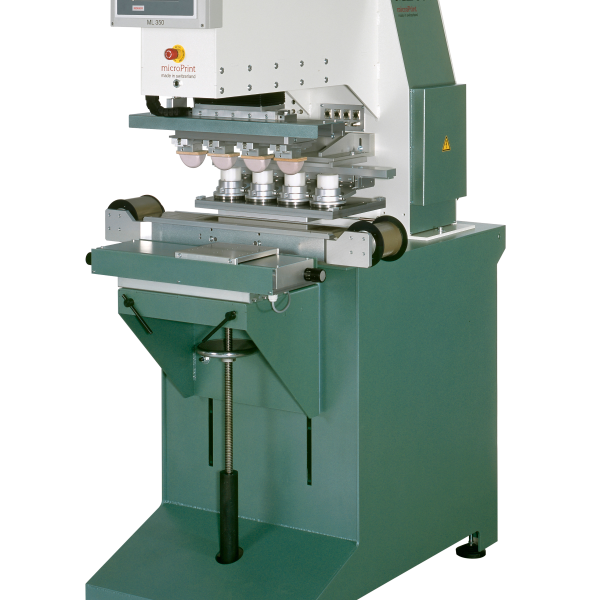

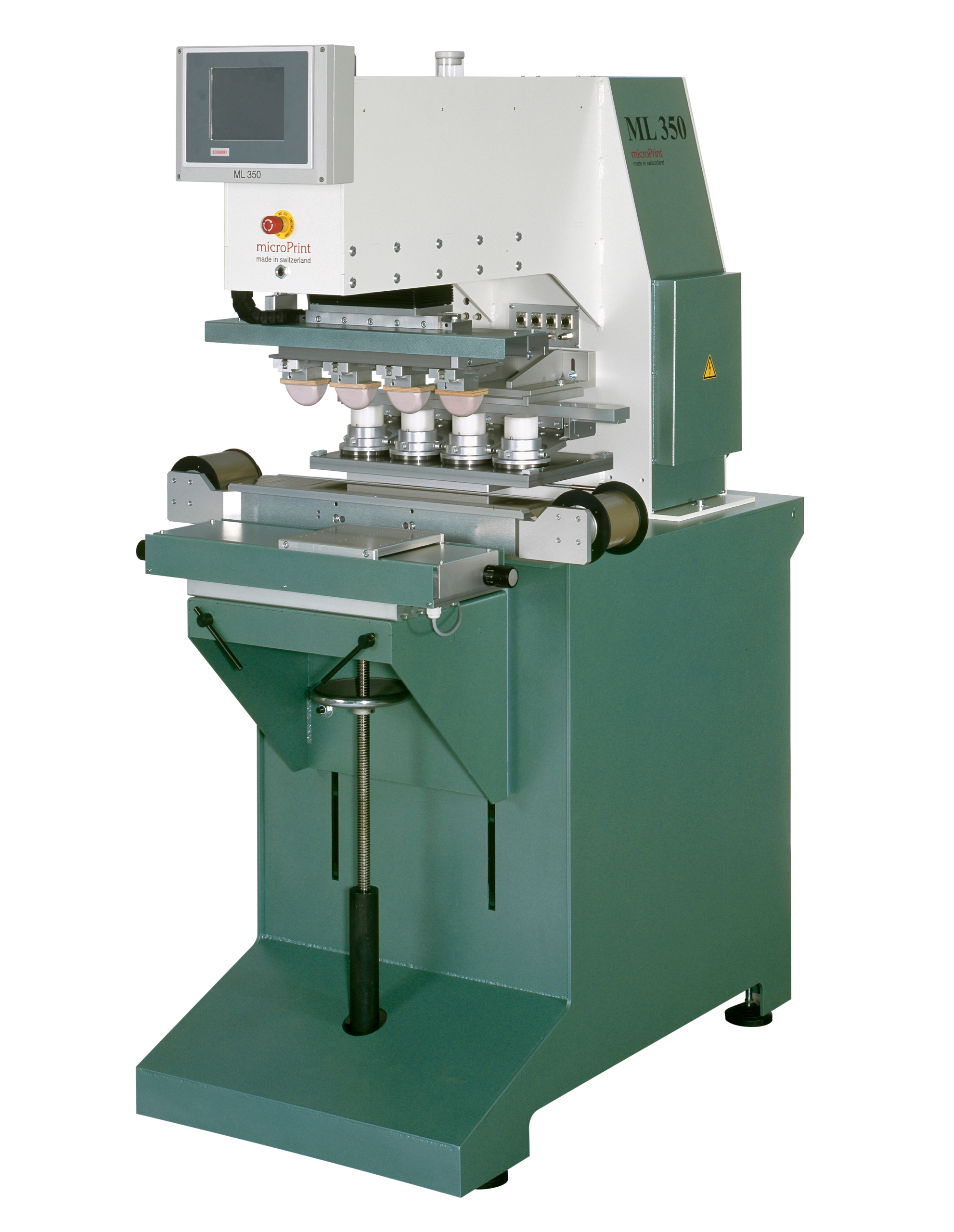

Pad printing machines with programmable print positioning. Linear or servomotor driven. You can access and print different pictures with this machine. Primary used in flexible production areas. enables print in 1 to multiple colours.
| Printing capacity: | wo.c. 1500/hr, w.c. 970/hr |
| Printing force: | max. 1750N |
| Drive: | pneumatic & linear motor |
| Air consumption: | 162 l/min |
| Compressed air supply: | 5–6 bar (87 psi) |
| Control system: | PLC Beckhoff |
| Main voltage: | 110–240V / 50–60Hz |
| Weight: | 360kg (with base) |
| Cliché size open system: | max. 350 x 120mm |
| Cliché size closed system: | max. 400 x 300mm |
| Cliché thickness: | 0.5/10mm |
| Cups: | 6×56,5×70,4×86,3×120,2x140mm |
| Number of colours: | 1-6 |
| Data sheet in PDF: | ML 350 |
