Product Description

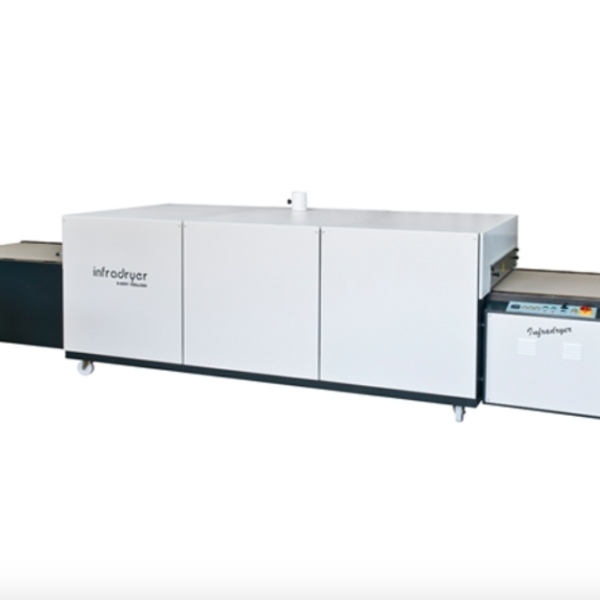

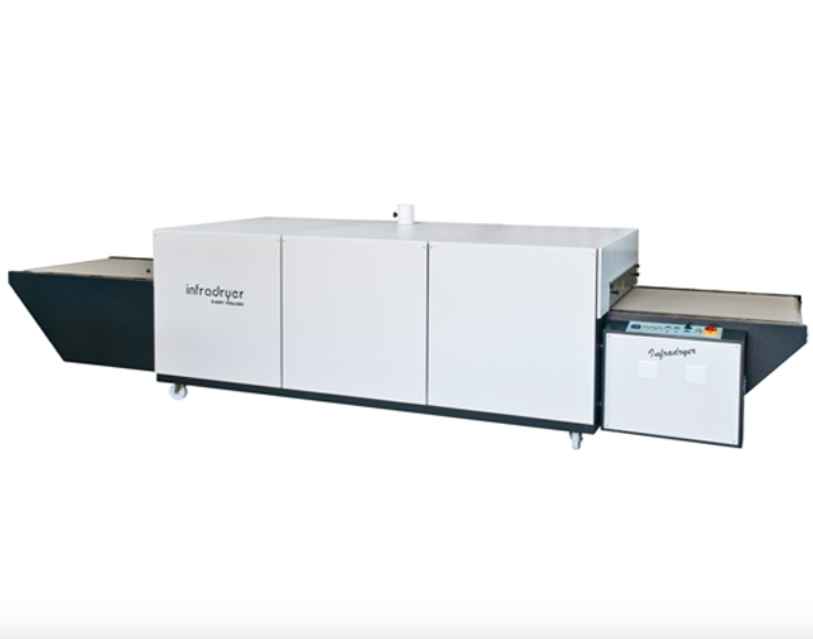

The INFRADRYER is a drying tunnel equipped suitable to dry plastisol inks; water base or solvent inks. The INFRADRYER is equipped with hot air turbine that will work in close loop air circuit so you have maximum energy saving with optimal drying results in all types of inks.
- Mesh belt coated with TEFLON;
- Electronic speed adjuster from belt speed;
- Re circulation from air in closed loop circuit for option water base drying, PLASTISOL and others;
- Hot air velocity with the possibility from adjustment;
- Heating emitters in chromium nickel;
- Digital temperature controller with PID method;
- Thermal isolation made by 10 mm thickness material from hot chamber;
- Chimney to make smoke exhaustion;
- Maximum height from object that you can dry is 13 cm as standard;
- Maximum working temperature as standard – 180 Âșc;
- Other dimensions can be manufacture by request.
INFRADRYER 6M | Units | IN 60014 | IN 60016 | IN 60018 |
---|---|---|---|---|
Heating dimension | Cm | 600×140 | 600×160 | 600×180 |
Curing time range | s | 1-7 | 1-7 | 1-7 |
Width of belt | Cm | 140 | 160 | 180 |
Maximum height of objects to dry | Cm | 13 | 13 | 13 |
Power install | kW | 68 | 74 | 86,4 |
Maximum working temperature | C | 200 | 200 | 200 |
External length | Cm | 715 | 715 | 715 |
External width | Cm | 180 | 210 | 220 |
External height | Cm | 130 | 130 | 130 |
Weight | Kg | 1200 | 1400 | 1700 |
Voltage | V | 3x 400 | 400 | 3×400 |
