Product Description

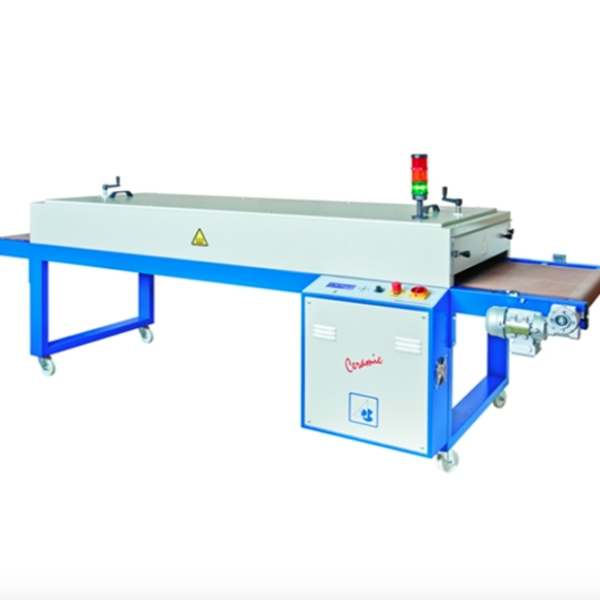

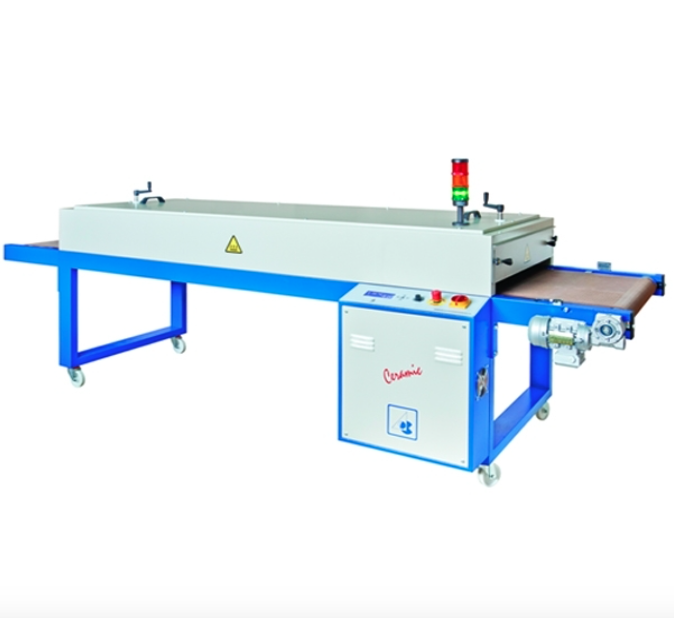

The CERAMIC DRYER is a drying tunnel equipped with ceramic emitters suitable to dry PLASTISOL inks printed direct in to garment or in paper (heat transfer method). The CERAMIC DRYER is equipped with the possibility to lower or raise the heating elements.
- Belt in mesh coated with Teflon;
- Electronic adjuster from belt speed;
- Equipped with ceramic heating elements;
- Possibility to adjust the height from the ceramic elements for better energy efficiency;
- Digital temperature controller with PID method;
- Thermal isolation in all surface for hot chamber;
- Working temperature range from: ambient temperature to 180ºC;
- Maximum height from objects to dry is 13cm as standard;
- Other dimensions can be manufacture.
| CERAMIC DRYER 3M | Units | CD 30050 | CD 30075 | CD 30010 | CD 30012 |
|---|---|---|---|---|---|
| Heating dimension | Cm | 300×50 | 300×75 | 300×100 | 300×125 |
| Curing time range | s | 25 to 120 | 25 to 120 | 25 to 120 | 25 to 120 |
| Width of belt | Cm | 50 | 75 | 100 | 125 |
| Maximum height of objects to dry | Cm | 13 | 13 | 13 | 13 |
| Power install | kW | 10 | 15 | 20 | 25 |
| External length | Cm | 450 | 450 | 450 | 450 |
| External width | Cm | 86 | 102 | 117 | 157 |
| External height | Cm | 150 | 150 | 150 | 150 |
| Weight | Kg | 660 | 720 | 760 | 800 |
| Voltage | V | 3x 400 | 3x 400 | 3x 400 | 3x 400 |
