Product Description

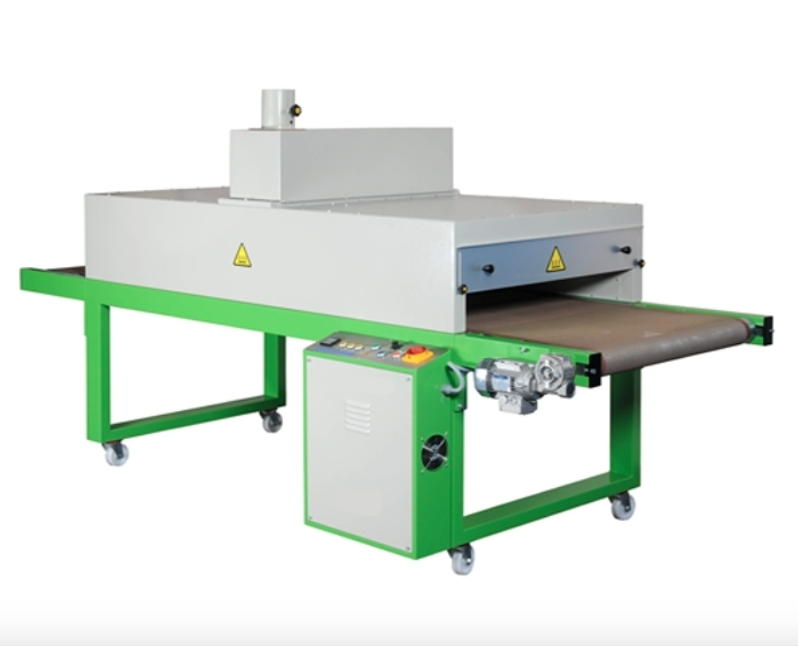

The INFRADRYER ECO is a drying tunnel equipped suitable to dry plastisol inks; water base or solvent inks. The INFRADRYER ECO is equipped with hot air turbine that will work in close loop air circuit so you have maximum drying capacity in water base drying and other type of inks.
- Mesh belt coated with TEFLON;
- Electronic speed adjuster from belt speed;
- Re circulation from air in closed loop circuit for option water base drying and plastisol;
- Hot air velocity with the possibility from adjustment;
- Heating emitters in chromium nickel;
- Digital temperarure controller with PID method;
- Chimney for exhaustion of smokes;
- Maximum high of object that you can dry is 13 cm as standard;
- Maximum working temperature as standard – 180 ºC.
| INFRADRYER ECO 2M | Units | IN ECO 20005 | IN ECO 20007 | IN ECO 20008 | IN ECO 20010 | IN ECO 20012 |
|---|---|---|---|---|---|---|
| Heating dimension | Cm | 200×50 | 200×70 | 200×80 | 200×100 | 200×120 |
| Curing time range | s | 25 a 120 | 1-7 | 1-7 | 1-7 | 1 – 7 |
| Width of belt | Cm | 50 | 70 | 80 | 100 | 120 |
| Maximum height of objects to dry | Cm | 13 | 13 | 13 | 13 | 13 |
| Power install | kW | 8 | 12,5 | 13,5 | 15,5 | |
| Maximum working temperature | C | 180 | 180 | 200 | 200 | 200 |
| External length | Cm | 310 | 310 | 310 | 310 | 310 |
| External width | Cm | 82 | 102 | 112 | 132 | 152 |
| External height | Cm | 150 | 150 | 150 | 150 | 150 |
| Weight | Kg | 180 | 200 | 230 | 260 | |
| Voltage | V | 3×400 | 3x 230 ou 3x 400 | 3x 230 ou 3x 400 | 3x 230 ou 3x 400 | 3×230 or 3×400 |
