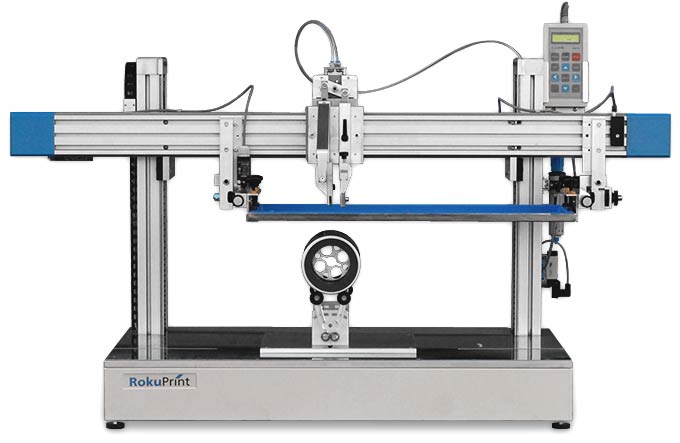

Universal screen printing machine RP 2.2 for flatprinting


Universal screen printing machine for flatprinting up to print size ( appr. ) 700 x 320 mm ( 27.5 x 12.5 inch ) , that replaces our well known model SD 2.1

Technical data RP 2.2

Max. printing size : ( appr. ) 700 x 320 mm ( 27.5 x 12.5 inch )
Max. space between machines base and screen ( appr. ) 300 ( 12 inch ) ( with adjustable table KO 04 appr. 10,5 inch )
Max. printing capacity : ( appr. ) 1800 prints / hour ( automated )
Printing attachment : pneumatic squeegee mechanism with separately adjustable printing squeegee and presqueegee
Option : electromechanical squeegee mechanism ( machine needs no compressed air ) , extended horizontal / vertical axis , side screen holder
Screen frame : aluminium frame
Rectangular profile : recommended 30 x 30 mm ( 1.2 x 1.2 inch )
Max. usefull screen size : ( appr. ) 1000 x 500 mm ( 39.5 x 19.5 inch )
Connective load : 230 vs. / 50 cps
Power input : 500 VA
Driving system : controlled D.C. motors
Weight : ( appr. ) 100 kg ( appr. 220 lb )
Measurements ( w x l x h ) : ( appr. ) 1250 x 720 x 800 mm ( 49 x 28.5 x 31.5 inch )
Measurements : machines base ( w x l ) : ( appr. ) 720 x 1000 mm ( 28.5 x 39.5 inch )

Control :
Microprocessor control . Programmable and menue guided adjustment of print stroke , screen detachment , screen lifting , printing speed and starting position . Electronic microadjustment and correction of the screen detachment in programme operation , adjustable continous operation , electronic counter , manual operating means with clear text display .

Signal interface : 24 V / DC with galvanically seperated inputs and outputs for starting the automation components , and for integrating the screen printing machine into the complete production plant .
