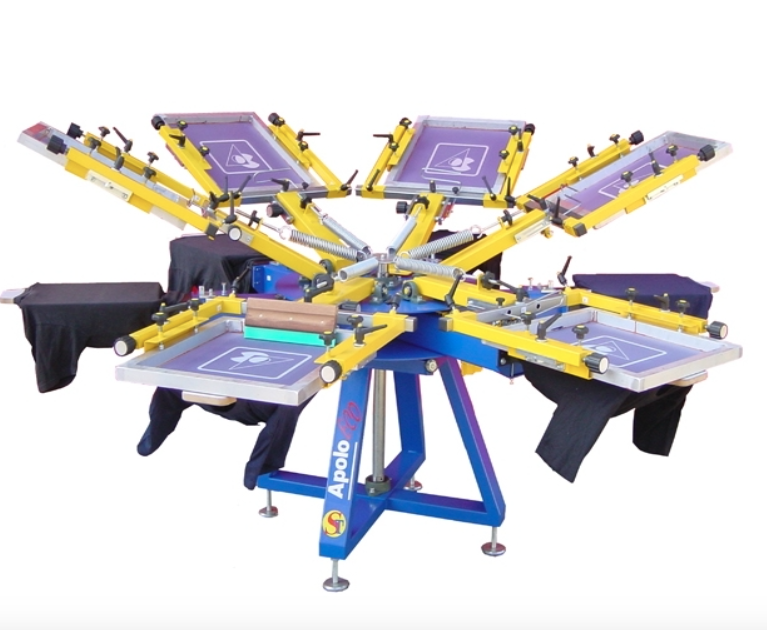

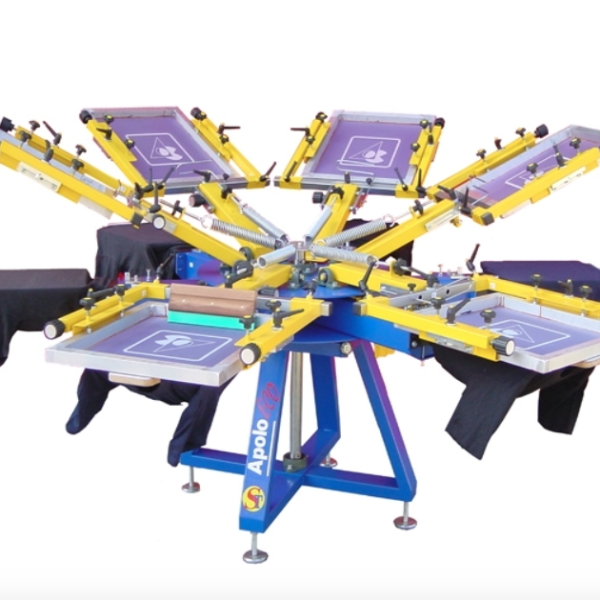

Apolo Manual Carousel


Product Description

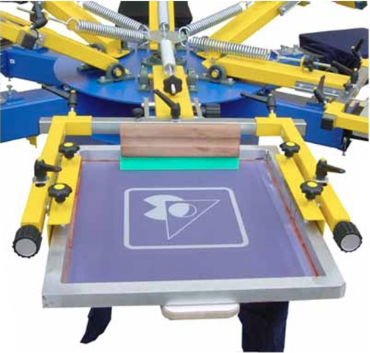

The APOLO PRINT is a textile printing manual carousel equipped with micro printing registers. The APOLO has the capacity to install several special pallets such as : umbrellas; sleeves; jackets; caps; vacuum pallet and others.



  • All heads can be lower at same time so more users can work together;
  • Available between in 4,6,8,10 and 12 colors configuration;
  • Palettes and screens can rotate separately;
  • Individual micro register in each color;
  • Possibility to print with different screen sizes;
  • Individual adjust from screen angle;
  • Possibility to adjust pallet in length direction;
  • Fast and easy assembly from screens and pallets;
  • Lateral and précised fixation from the screen;
  • Solid mechanics construction;
  • Available accessories to print: caps, umbrellas, jackets, transfers, sleeves, etc…
APOLO PRINT Units AP – 4 AP – 6 AP – 8 AP – 10 AP – 12
Colors quantity 4 6 8 10 12
Pallets quantity 4 6 8 10 12
Maximum screen size cm 59×80 59×80 59×80 59×80 59×80
Size from alumium pallet Cm 40×50 40×50 40×50 40×50 40×50
Diameter Cm 273 280 310 340 360
Height from working platform cm 90 90 90 90 90
Weight Kg 200 300 400 500 600
