Etal Print


Product Description

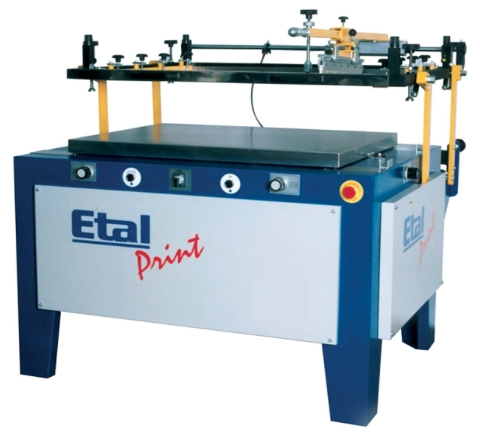

The ETALPRINT is a manual screen printing machine equipped with a guide armed to help in better printing results. The ETALPRINT is equipped with vacuum table and micro registers from printing. The ETALPRINT has the capacity to raise the screen parallel to vacuum table.

  • Perfect and quiet vacuum;
  • Manual parallel screen raise;
  • Plate in aluminium perforated;
  • Micrometrics registers on the printing plate;
  • One hand arm with pressure control from squeegee and flood bar;
  • Possibility to adjust any screen size;
  • Possibility to print until 100 mm height;
  • Automatic vacuum start;
  • Weight and counter weight to balance the screen.
ETALPRINT Units ETAL 0507 ETAL 0710 ETAL 0812
Maximum printing size Cm 50×70 70×100 80×120
Maximum screen size cm 88 x 108 108 x 138 118 x158
External length Cm 130 145 165
External width Cm 115 160 180
External height Cm 115 115 115
Weight Kg 125 175 250
Voltage V 230 / 50 230 / 50 230 / 50
