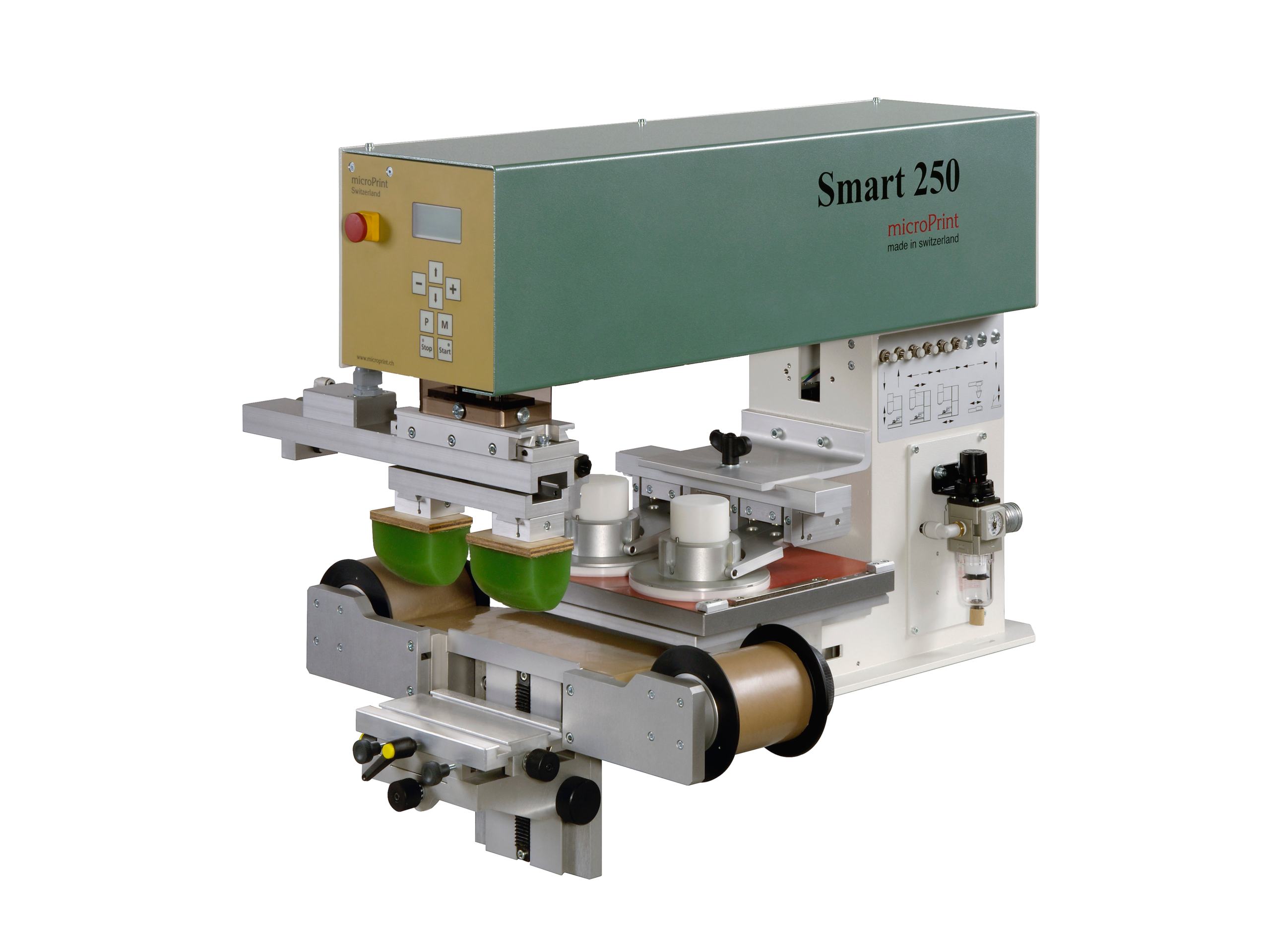

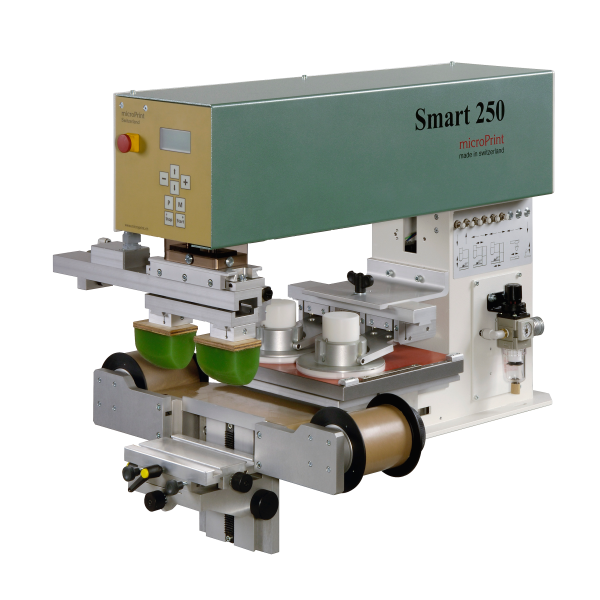

Smart 250 Pad Printer


Product Description

Printing capacity: wo.c. 1500/hr, w.c. 1000/hr
Printing force: max. 750N
Drive: pneumatic
Air consumption: 110 l/min
Compressed air supply: 5–6 bar (87 psi)
Control system: PLC Panasonic
Main voltage: 110–240V / 50–60Hz.
Weight: Machine: 75kg, Base: 89kg
Cliché size open system: max. 250 x 120mm
Cliché size closed system: max. 260 x 250mm
Cliché thickness: 0.5/10mm
Cups: 4×56,3×70,2×86,2x120mm
Number of colours: 1-4
Data sheet in PDF: MS 250
