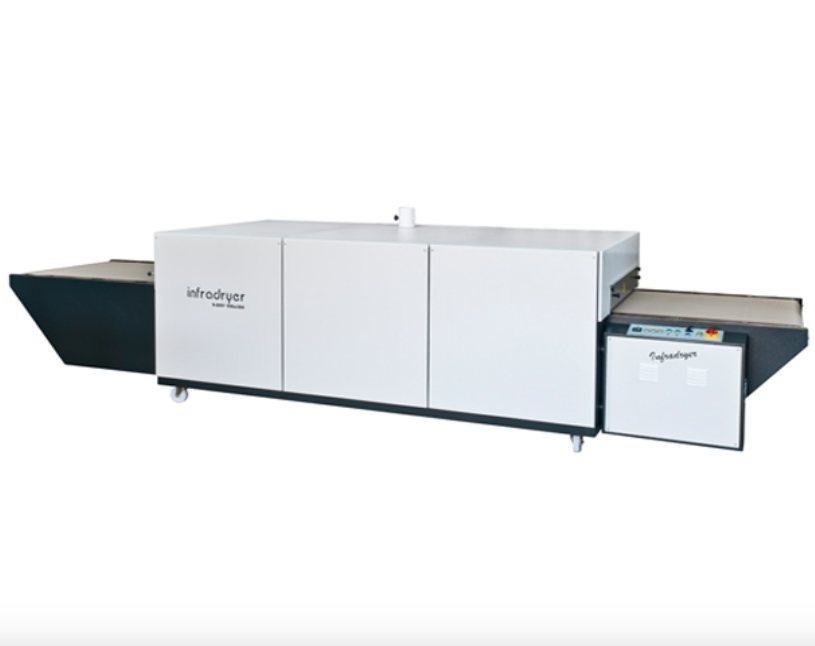

INFRADRYER 4M


Product Description

The INFRADRYER is a drying tunnel equipped  suitable to dry plastisol inks; water base or solvent inks. The INFRADRYER is equipped with hot air turbine that will work in close loop air circuit so you have maximum energy saving with optimal drying results in all types of inks.

  • Mesh belt coated with TEFLON;
  • Electronic speed adjuster from belt speed;
  • Re circulation from air in closed loop circuit for option water base drying, PLASTISOL and others;
  • Hot air velocity with the possibility from adjustment;
  • Heating emitters in chromium nickel;
  • Digital temperature controller with PID method;
  • Thermal isolation made by 10 mm thickness material from hot chamber;
  • Chimney to make smoke exhaustion;
  • Maximum height from object that you can dry is 13 cm as standard;
  • Maximum working temperature as standard – 180 ºc;
  • Other dimensions can be manufacture by request.
INFRADRYER 4M Units IN 40007 IN 40008 IN 40010 IN 40012 IN 40015 IN 40016
Heating dimension Cm 400×70 400×80 400×100 400×120 400×150 400×160
Curing time range s 60 – 180 60 – 180 60 – 180 60 – 180 60 – 180 60 – 180
Width of belt Cm 70 80 100 120 150 160
Maximum height of objects to dry Cm 13 13 13 13 13 13
Power install kW 22,4 25,6 32 38,4 48 51,2
Maximum working temperature C 200 200 200 200 200 200
External length Cm 515 515 515 515 515 515
External width Cm 115 125 145 165 185 195
External height Cm 130 130 130 130 130 130
Weight Kg 450 490 540 600 650 670
Voltage V 380 380 380 380 380 3x 400
