M- print manual flat bed printer


Product Description

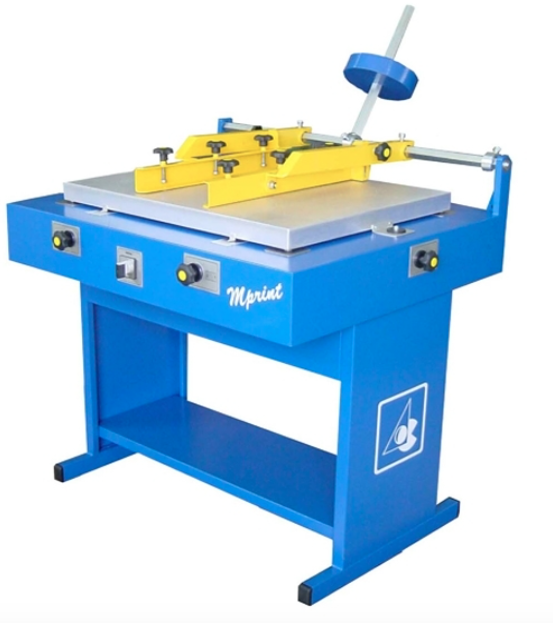

The M-PRINT is a manual screen printing machine equipped side clamps with size adjustment and with counter weight. The M-PRINT is equipped with vacuum table and micro registers from printing.

  • Perfect and quiet vacuum;
  • Plate in aluminium perforated;
  • Micrometrics registers on the printing plate;
  • Side clamps from screen fizxation to have a perfect result;
  • Possibility to adjust the side clamps to¬†any screen size;
  • Stantby incliation from screen with angle adjustment;
  • Automatic vacuum start;
  • Counter weight to help and balance in screen raising.
M-PRINT Units MP 0305 MP 0507 MP 0710
Maximum printing size Cm 35×50 50×70 70×100
Vacuum area Cm 36×51 51×70 70×100
Dimension from printing table Cm 55×70 70×90 90×120
Maximum screen size cm 60×75 70×88 95×120
External depth cm 95 115 145
External width Cm 75 90 110
External height Cm 105 105 105
Weight Kg 75 90 125
Voltage V 230/50 230/50 230/50
