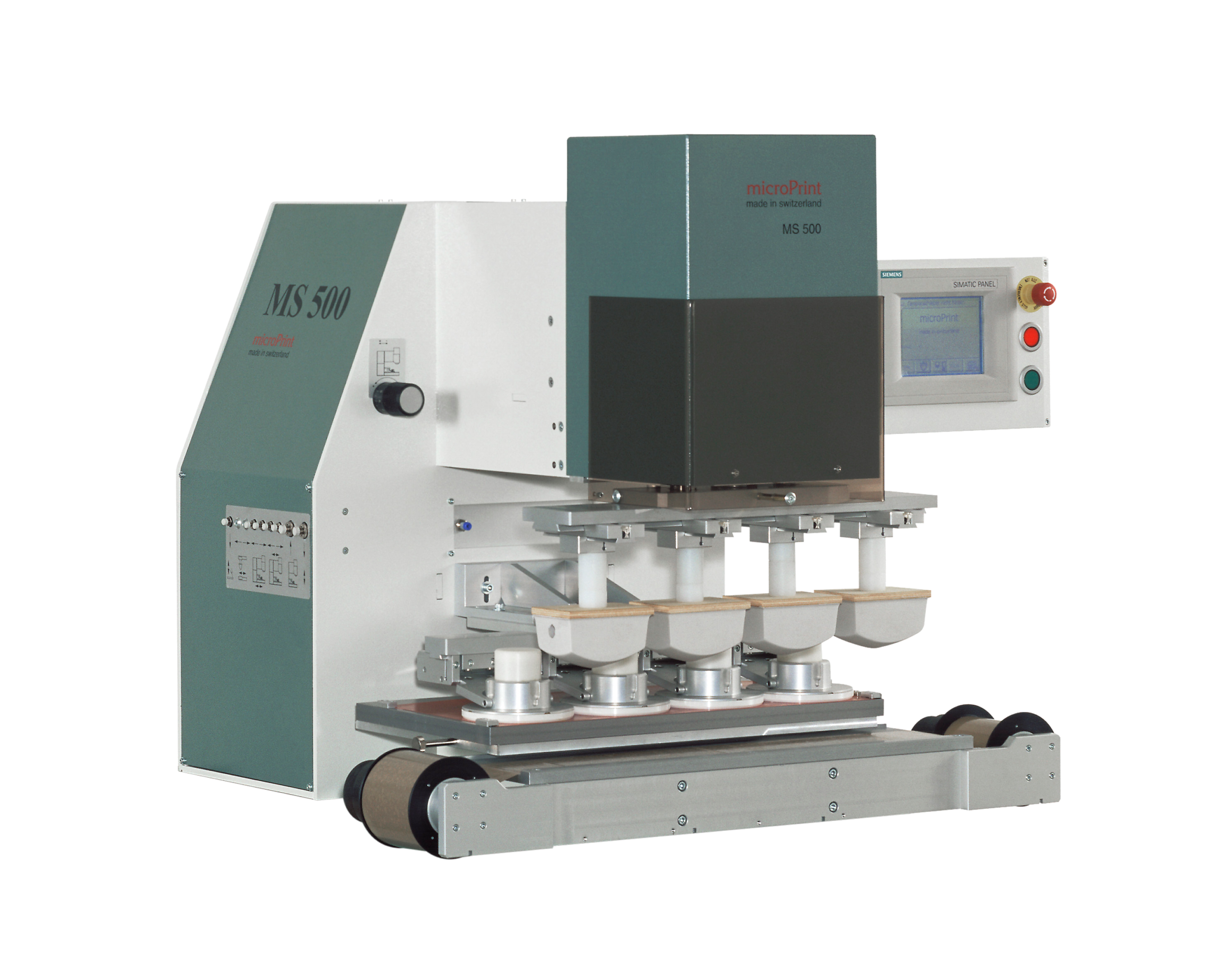

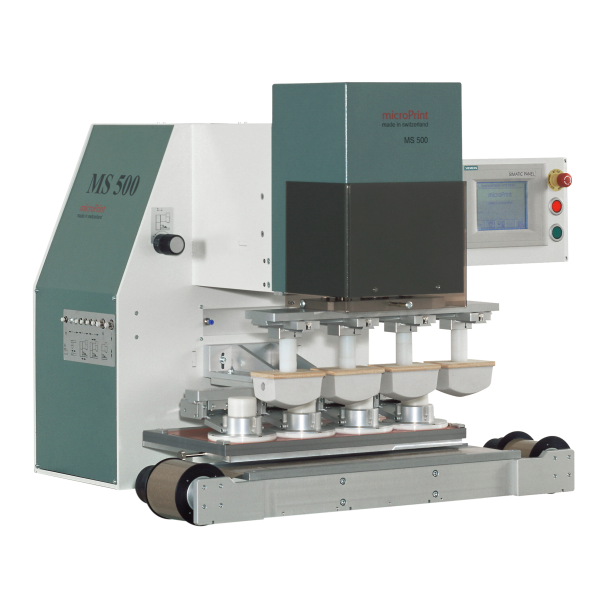

MS 500 Pad Printer


Product Description

The MS line is a conventional machine Serie with all the modern features, such as automatic viscosity control and cliché temperature regulation. With pneumatic drive. Enable 1-8 colour print.

Printing capacity: until 1000/hr
Printing force: max. 3000N
Drive: pneumatic
Air consumption:
Compressed air supply: 5–6 bar (87 psi)
Control system: PLC Panasonic
Main voltage: 110–240V / 50–60Hz.
Weight: 300kg
Cliché size open system: max. 500 x 150mm
Cliché size closed system: max. 520 x 300mm
Cliché size slide: max. 800 x 120mm
Cliché thickness: 0.5/10mm
Cups: 8×56,6×70,5×86,4×120,3x140mm
Number of colours: 1-8
Data sheet in PDF: MS 500 / MS 500 Slide
