Product Description

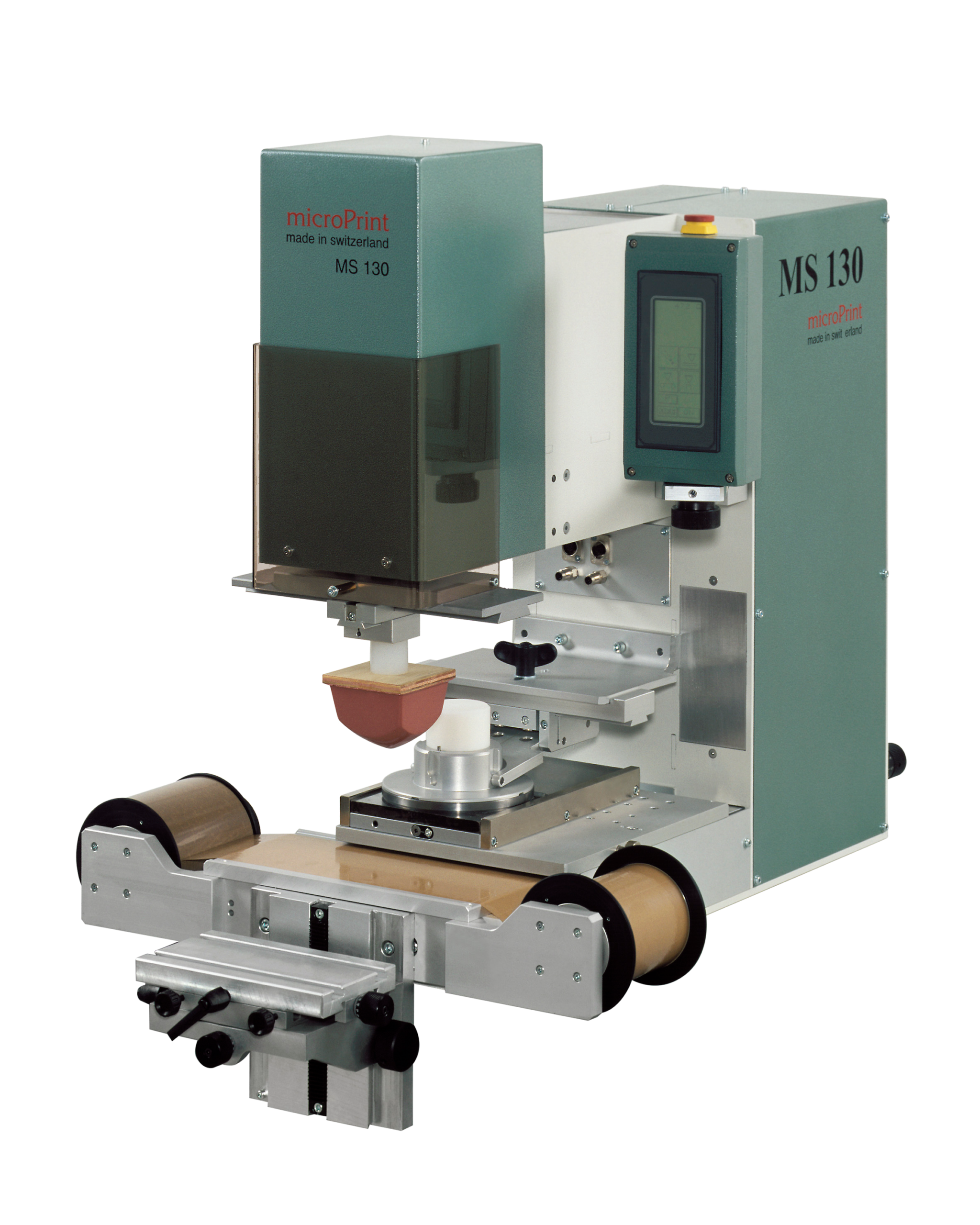

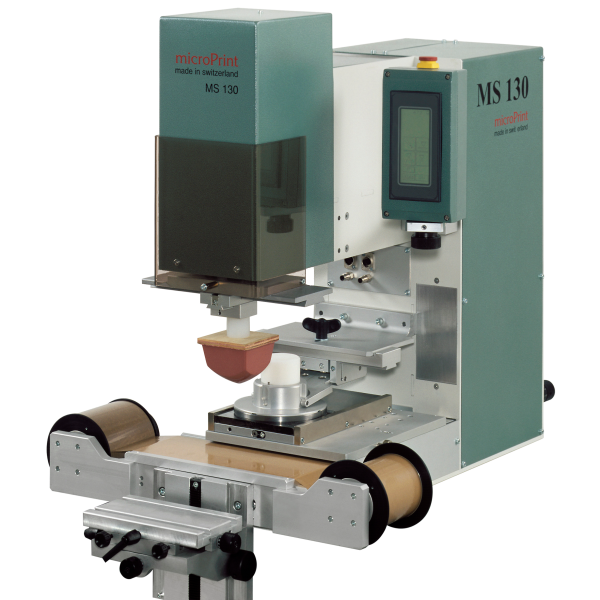

The MS line is a conventional machine Series with all the modern features, such as automatic viscosity control and cliché temperature regulation. With pneumatic drive. Enable single / 1 colour pad printer.
| Printing capacity: | wo.c. 1600/hr, w.c. 1200/hr |
| Printing force: | max. 480N |
| Drive: | pneumatic |
| Air consumption: | 104 l/min |
| Compressed air supply: | 5–6 bar (87 psi) |
| Control system: | PLC Panasonic |
| Main voltage: | 110–240V / 50–60Hz. |
| Weight: | Machine: 75kg, Base: 89kg |
| Cliché size open system: | max. 120 x 120mm |
| Cliché size closed system: | max. 130 x 250mm |
| Cliché thickness: | 0.5/10mm |
| Cups: | 1×56,1×70,1×86,1x120mm |
| Number of colours: | 1-2 |
| Data sheet in PDF: | MS 130 |
