Product Description

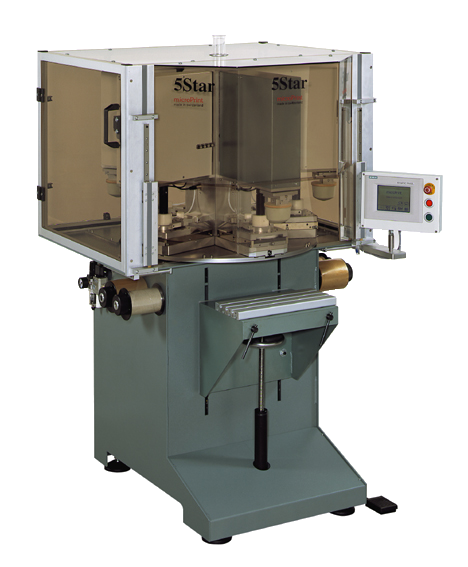

The 5star line are multi-color pad printing machines, for which only one print retainer is needed. Due to extensive programming options and units, you can complete even very complex printing tasks.
| Printing capacity (Colors-Parts): | 1-2500/hr, 2-1000/hr, 5-580/hr |
| Printing force: | max. 1100N |
| Drive: | pneumatic & servo motor |
| Air consumption: | 265 l/min |
| Compressed air supply: | 5–6 bar (87 psi) |
| Control system: | PLC Siemens |
| Main voltage: | 110–240V / 50–60Hz |
| Weight: | 435kg |
| Cliché size open system: | – |
| Cliché size closed system: | max. 130 x 250mm |
| Cliché thickness: | 0.5/10mm |
| Cups: | 5×86,5x120mm |
| Number of colours: | 1-5 |
| Data sheet in PDF: | 5Star |
