Lux Compact


Product Description

The LUX COMPACT is a machine suitable to expose screen printing screen. The machine is equipped with a Halogen light source unit with instant ON/OFF that achieves a better energy efficiency.

  • Halogen light source for fast and perfect screen exposing;
  • Possibility to equipped exposure unit with instant halogen light source (no need to pre heat or be in standby mode);

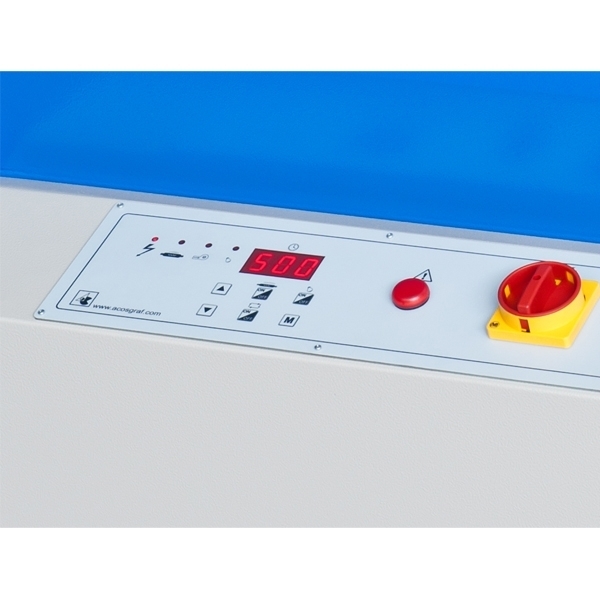

  • LCD control panel;
  • Equipped as standard with photocell from light intensity measure to make automatic compensation from exposure times;
  • Capable to save until 10 different program times;
  • Exposing time controlled by a digital counter;
  • Fully automatic operation method from vacuum and exposing operation;
  • Perfect and quiet vacuum;
  • Yellow light to prepare the job;
  • Emulsion hardener program available as standard.
LUX COMPACT Units LX COMP 0608 LX COMP 0709 LX COMP 0913 LX COMP 1215
Maximum screen size cm 60×80 70×90 90×130 125×150
Power from halogen light source W 3000 RAPID 3000 RAPID 3000 RAPID 5000 RAPID
External depth cm 90 100 120 150
External width Cm 110 120 160 185
External height Cm 105 110 115 145
Power install Kw 3200 3200 3200 5200
Weight Kg 250 300 350 450
Voltage V 3×400 3×400 3x 400 3x 400
