Lider Dry Verticle


Product Description

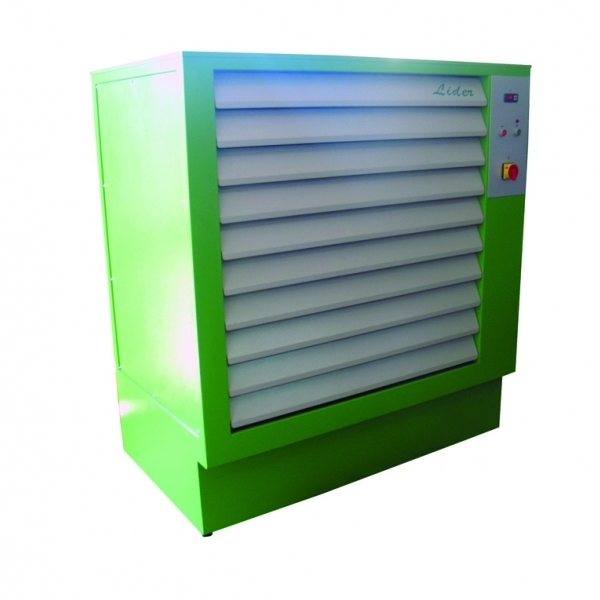

 The LIDERDRY VERTICAL is a dryer suitable to dry the emulsion and water from screen printing screens after cleaning.

  • Screen slots made in metal treated;
  • Cabinet with forced ventilation;
  • Black heating elements;

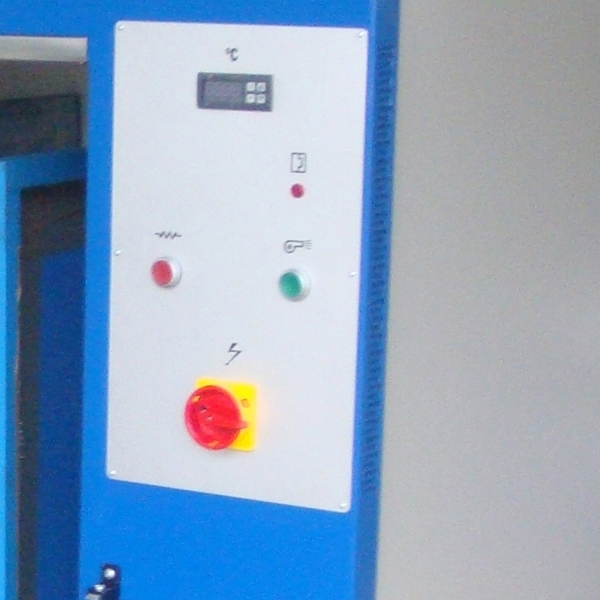

  • Digital temperature┬ácontroller with digital display;
  • Maximum working temperature up to 50 degrees;

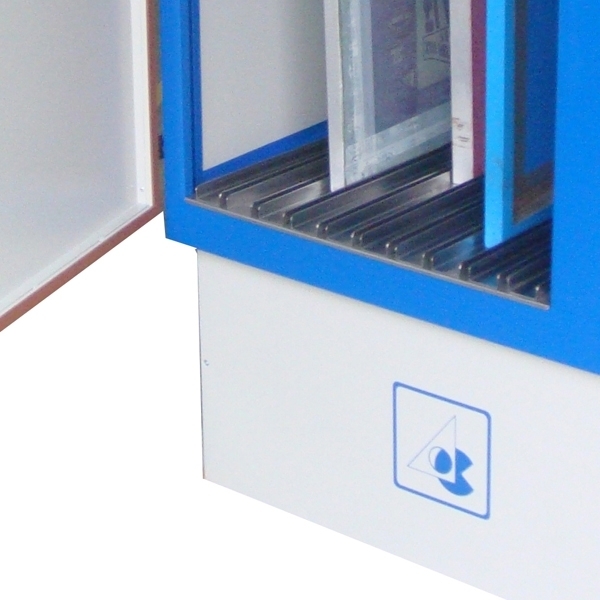

  • Screen slots capable to accepted screen profiles up to 40×40 mm;
  • Possibility to dry either emulsion coated or water from screen cleaning;
  • Other measures can be made with request.
LIDERDRY VERTICAL Units LD V – 0710 / 5 LD V – 0710 / 10 LD V – 0912 / 5 LD V – 0912 /10
Number of Drawers 5 10 5 10
Maximum screen size cm 70×100 70×100 90×120 90×120
External depth cm 77 77 97 97
External width Cm 70 101 70 101
External height Cm 175 175 195 195
Weight Kg 220 280 250 320
Voltage V 230 or 400 230 or 400 230 or 400 230 ou 400
