INFRADRYER 2M


Product Description

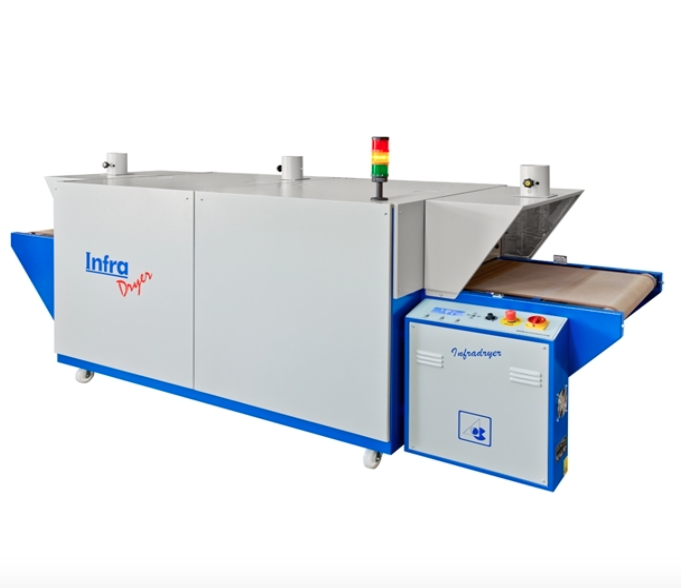

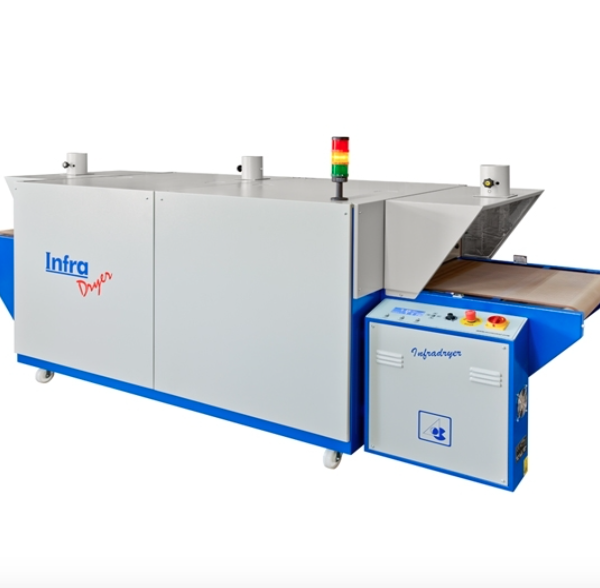

The INFRADRYER is a drying tunnel suitable to dry plastisol inks; water base or solvent inks. The INFRADRYER is equipped with “a” hot air turbine that will work in a close loop air circuit for maximum drying capacity for water base and other types of ink.

  • Mesh belt coated with TEFLON;
  • Electronic speed adjuster for belt speed;
  • Re-circulation of air in closed circuit for option water base drying;
  • Hot air velocity with the possibility for adjustment;
  • Heating emitters in chromium nickel;
  • Digital temperature controller with PID method;
  • Extraction of vapors (steam – condensation);
  • Maximum height of object that you can dry is 13 cm as standard;
  • Maximum working temperature as standard – 180 ºc.
INFRADRYER 2M Units IN 20007 IN 20008 IN 20010 IN 20012
Heating dimension Cm 200×70 200×80 200×100 200×120
Curing time range s 60 – 180 60 – 180 60 – 180 60 – 180
Width of belt Cm 70 80 100 120
Maximum height of objects to dry Cm 13 13 13 13
Power install kW 14 14 16 20,5
Maximum working temperature C 180 180 180 180
External length Cm 315 315 315 315
External width Cm 115 125 145 165
External height Cm 130 130 130 130
Weight Kg 250 270 300 330
Voltage V 220 ou 380 220 ou 380 220 ou 380 220 ou 380
