Product Description

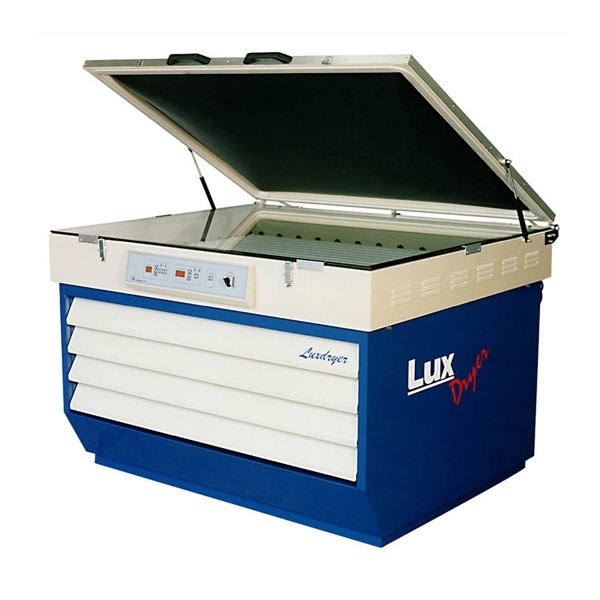

The LUX MIDI LED is a machine suitable to expose screen printing screen.The machine is equipped with special UV SPECIAL LEDS for faster screen exposure and maximum detail. The LUX MIDI LED is fully automatic and is equipped with a pressure meter for the vacuum to prevent accidental opening from screens.

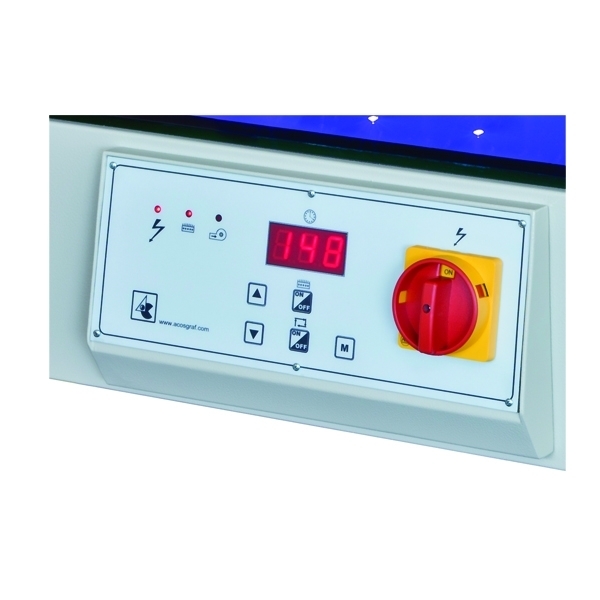

- LCD control panel;
- Exposure time controlled by a digital counter;
- Fully automatic operation for vacuum and exposure;
- Perfect and quiet vacuum;

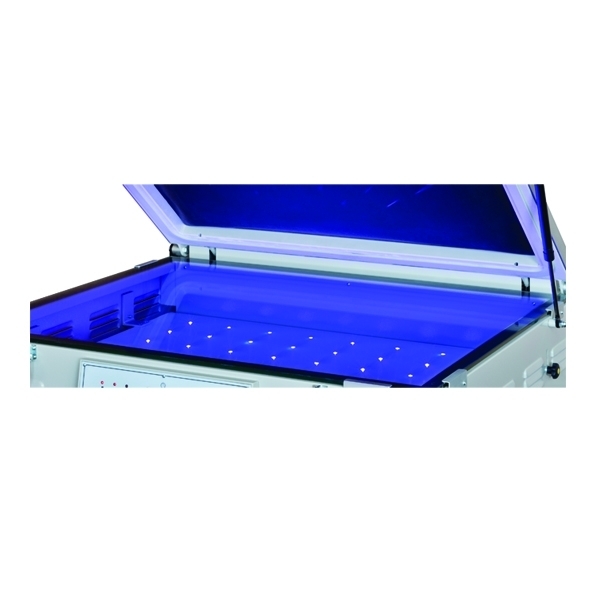

- UV Special LEDS for fast screen exposure;
- Drying cabinet with forced ventilation;
- Yellow leds to prepare the job;
- Capable to save up to 10 different programs;
- Emulsion hardener program available as standard.
| LUXMIDI LED | Units | LUX LED 0608 | LUX LED 0811 |
|---|---|---|---|
| Maximum screen size | cm | 60×80 | 80×110 |
| External depth | cm | 105 | 125 |
| External width | Cm | 100 | 137 |
| External height | Cm | 30 | 30 |
| Power install | Kw | 1,15 | 1,15 |
| Weight | Kg | 90 | 140 |
| Voltage | V | 230 | 230 |
