GALAXY COLUMBIA


Product Description

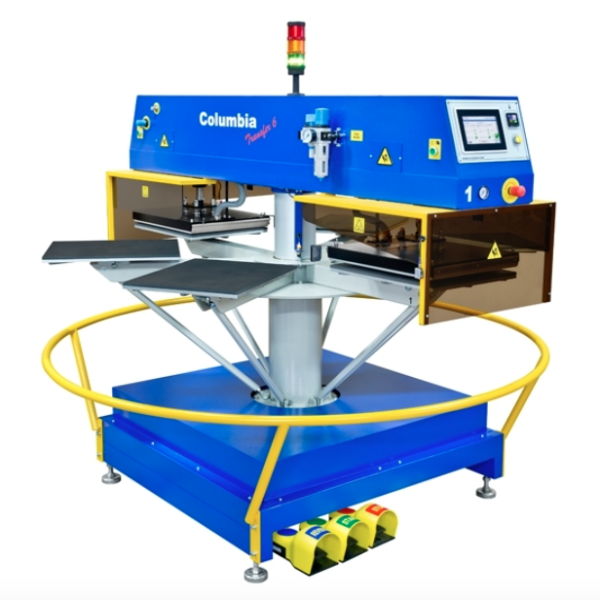

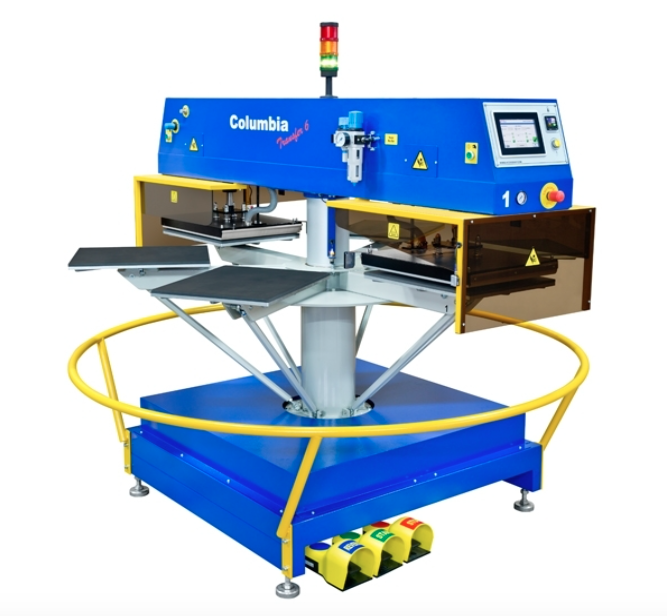

The COLUMBIA TRANSFER is an automatic heat press equipped with two independent transfer heads that can produce up to 30% more production when compared to standard pneumatic heat presses.

  • Individual Temperature Control for each Transfer Head;
  • Individual Timer Control for each Transfer Head;
  • Individual Pressure Control for each Transfer Head;
  • PLC digital control;
  • Three operating options:  Manual , Semi Automatic or Fully Automatic;
  • Emergency Stop on each Transfer Head;
  • Two heated platen size 50 x 40 cm coated with Teflon;
  • Plate base with Silicone Rubber (10 mm tick);
  • Option to change the plate for different sizes;
  • Photocell for operator security;
  • Option to move Plates in reverse and half index.
GALAXY COLUMBIA Units COL 6-2 COL 4-2
Number of working plates 6 4
Number of transfer heads 2 2
Maximum working pressure Kg 2490 2490
Heat Platen size Cm 50×40 50×40
Maximum working temperature C 220 220
Power Output W 6000 6000
Diameter Cm 220 180
Weight Kg 800 650
Voltage V 3x 400 3x 400
