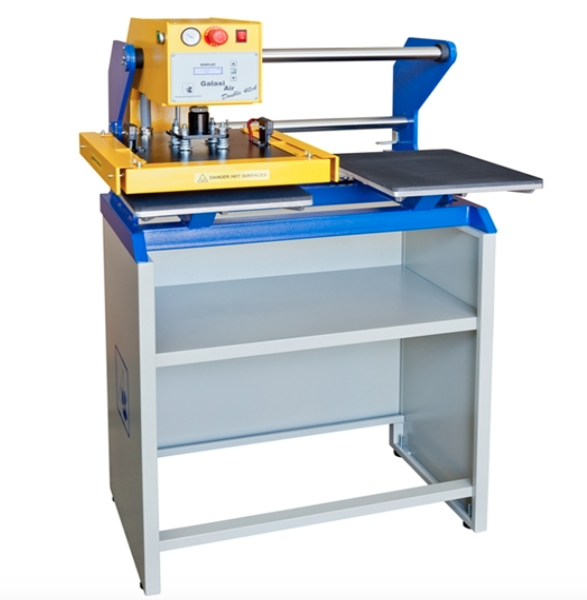

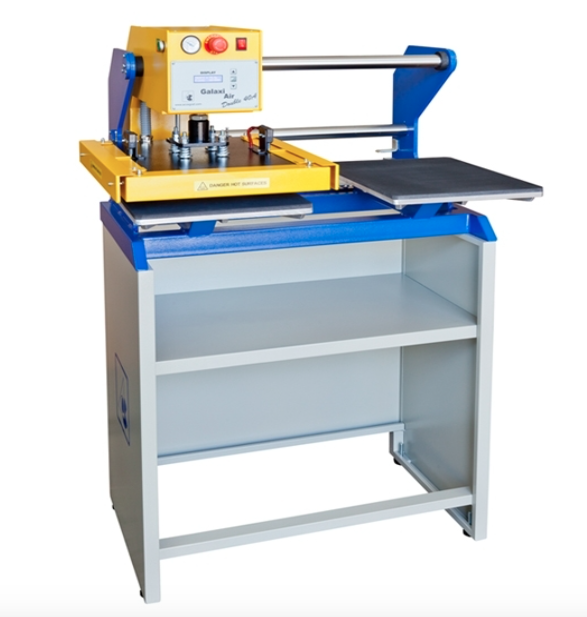

GALAXY AIR 40 DOUBLE


Product Description

The GALAXY AIR 40 DOUBLE it´s a double plate pneumatic heat transfer press equipped with a 40×50 cm heating plate. The machine can be equipped with side movement made by cylinder or as manual. As option you can have also lasers and bottom self for machine support.

  • Digital temperature controller;
  • Electronic time control with 2 individual timers (pressing and paused between cycles) that can be adjusted;
  • Pressure apply to transfer made through pneumatic cylinder;
  • Pressure control with gauge to indicate valor;
  • Maximum heating transfer plate with 40×50 cm;
  • Heating plate protect with Teflon sheet;
  • 10 mm thickness rubber foam in inferior base;
  • Power install 2,5 Kw;
  • Option to have side movement made by pneumatic cylinder;
  • Pre pressing program available in all models;
  • Economy from energy mode available in all models;
  • Security bar in side and pressing movement
GALAXY AIR 40 DOUBLE Units AIR 40 – A
Heat Platen size Cm 40×50
Power install kW 2,5
Maximum pressure apply to transfer Kg 2490
Maximum working temperature C 220
Weight Kg 250
Voltage V 230/50
