Lux Midi


Product Description

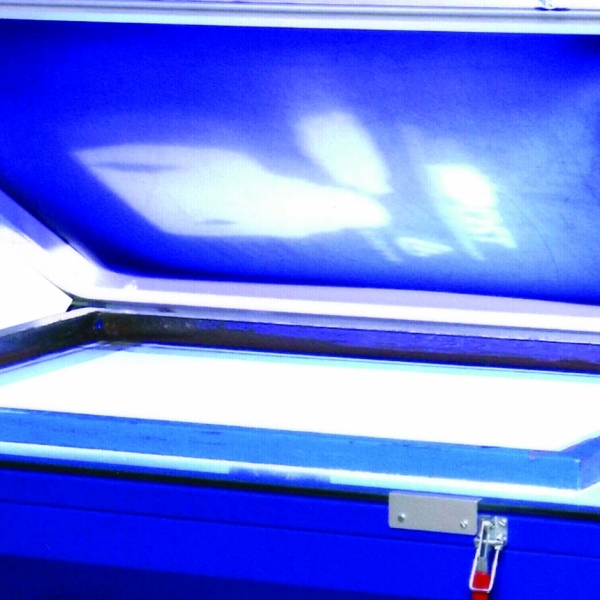

The LUX MIDI is a machine suitable to expose screen printing screen. The machine is equipped with special design UV light bulbs. The LUX MIDI is fully automatic operation and is equipped with pressure metre from vacuum to avoid miss opening from screens.

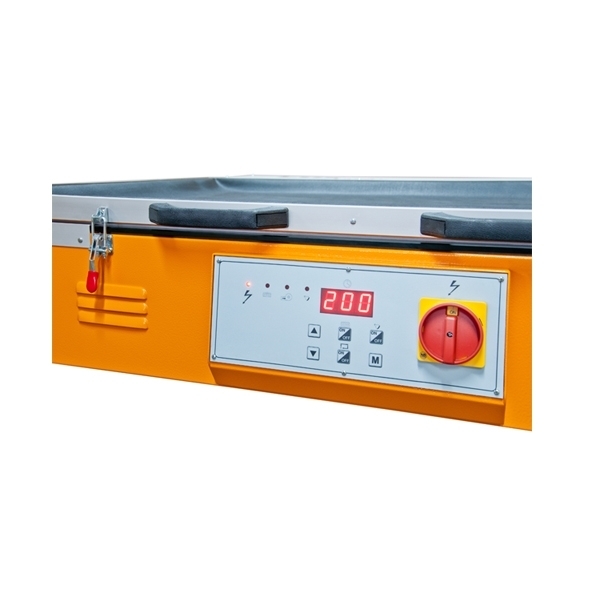

  • LCD control panel;
  • Exposing time controlled by a digital counter;
  • Fully automatic operation method from vacuum and exposing operation;
  • Perfect and quiet vacuum;

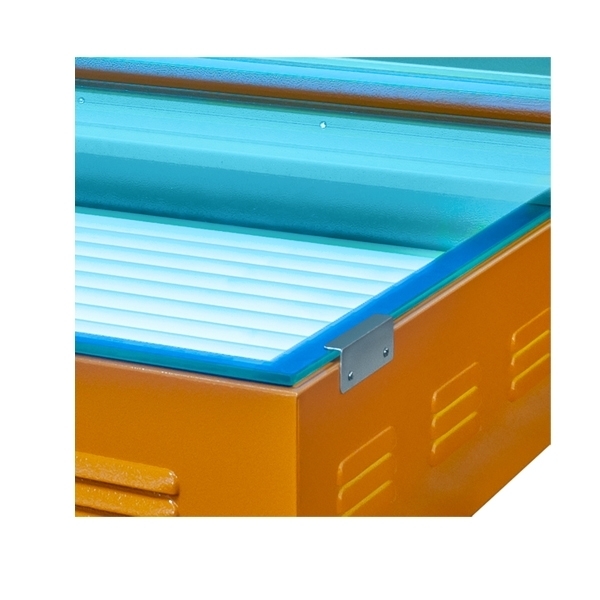

  • Actinic light source for fast screen exposing;
  • Yellow light to prepare the job;
  • Capable to save until 10 different program times;
  • Emulsion hardener program available as standard.
LUXMIDI Units LUX MD 0608 LUX MD 0811
Maximum screen size cm 60×80 80×110
Power of exposure light W 300 520
External length Cm 100 137
External depth cm 105 125
External height Cm 30 30
Voltage V 220 220
