Lux Dryer


Product Description

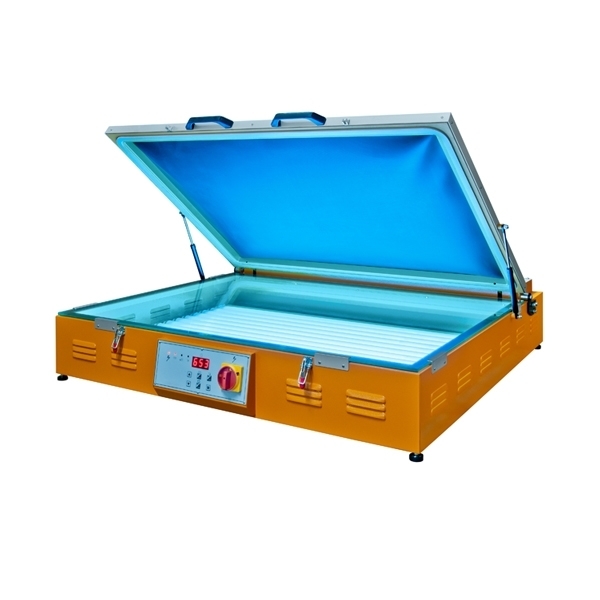

The LUXDRYER is a machine suitable to expose screen printing screen.The machine is equipped with special design UV light bulbs for faster screen exposure and maximum detail. The LUXDRYER is fully automatic and is equipped with a pressure meter for the vacuum to prevent accidental opening from screens.

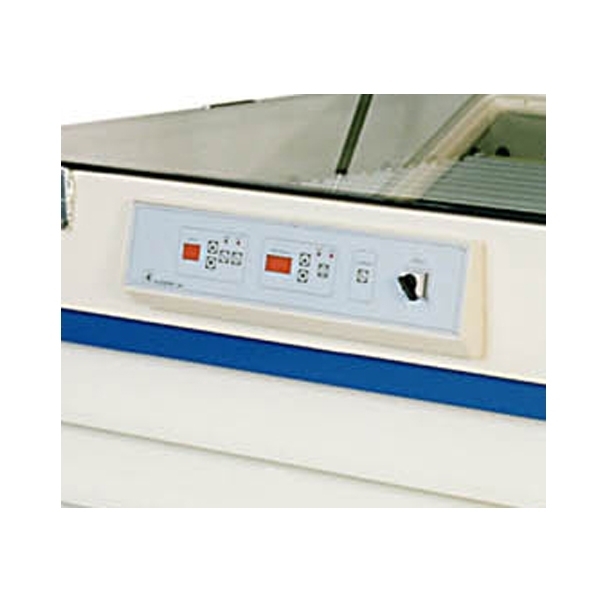

  • LCD control panel;
  • Exposure time controlled by a digital counter;
  • Fully automatic operation for vacuum and exposure;
  • Perfect and quiet vacuum;
  • Actinic light source for fast screen exposure
  • Digital temperature control for drying cabinet;
  • Working temperature of drying cabinet – 15 to 50 degrees;
  • Drawers running smoothly in ball-bearing slides with end stop;
  • Drying cabinet with forced ventilation;
  • Yellow light to prepare the job;
  • Capable to save up to 10 different programs;
  • Emulsion hardener program available as standard.
LUXDRYER Units LUX DR 0608 LUX DR 0811 LUX DR 1012 LUX DR 1215
Maximum screen size cm 60 x 80 80 x 110 100 x 125 120 x 150
Power of exposure light W 300 520 680 1080
External length Cm 90 137 145 172
External depth cm 110 105 125 147
External height Cm 105 105 105 105
Power install Kw 2,1 3 4 4,5
Weight Kg 100 130 160 250
Voltage V 230 / 50 230 / 50 230 / 50 230 / 50
