Product Description

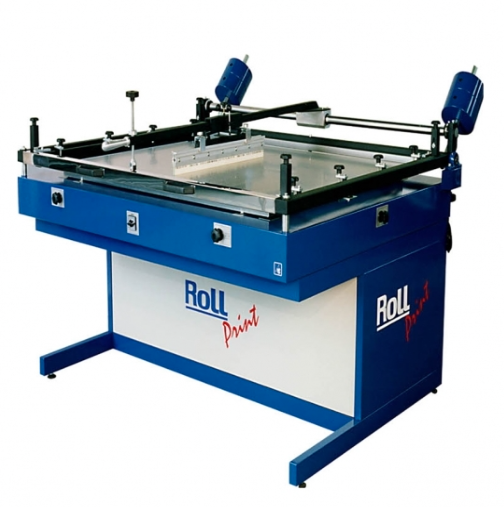

The ROLPRINT is a manual screen printing machine equipped with a guide armed to help in better printing results. The ROLPRINT is equipped with vacuum table and micro registers from printing.
- Perfect and quiet vacuum;
- Plate in aluminium perforated;
- Micrometrics registers on the printing plate;
- One hand arm with pressure control from squeegee and flood bar;
- Possibility to adjust any screen size;
- Possibility to print until 100 mm height;
- Automatic vacuum start;
- Weight and counter weight to balance the screen.
| ROLPRINT | Units | ROL 0507 | ROL 0710 | ROL 0812 |
|---|---|---|---|---|
| Maximum printing size | Cm | 50×70 | 70×100 | 80×120 |
| Vacuum area | Cm | 52×72 | 72×102 | 85×125 |
| Dimension from printing table | Cm | 70×90 | 90×120 | 105×145 |
| Maximum screen size | cm | 78×98 | 98×128 | 113×148 |
| External length | Cm | 130 | 125 | 180 |
| External width | Cm | 105 | 125 | 140 |
| External height | Cm | 115 | 115 | 115 |
| Weight | Kg | 100 | 150 | 200 |
| Voltage | V | 230 / 50 | 230 / 50 | 230 / 50 |
