AZON – UV Digital Printer


AZON RAZOR TECHNICAL SPECIFICATIONS

Model Azon RAZOR
Printing technology Ink-jet (Micro Piezo Head)
Maximum printing size 290 mm x 800 mm (11.4 x 31.5 in.)
Max thickness 200 mm (7.9 in.)
Ink type LED UV 220cc cartridges
Ink C, M, Y, K + W, W, G, G
Ink-curing unit Built-in UV-LED light
Printing resolution Max 2880 dpi
Power requirements AC 110V+-10%, 1.05 A (50/60 Hz), 231 W (in standby mode 59,4 W)
Networking Ethernet (10BASE-T/100BASE-TX, automatic switching)
Environment conditions Temperature 20 to 32°C, Relative humidity 35 to 80%
Printer software Win 7 / 8 / 10
Printable media Glass, metal, stone, wood, plastics…
Dimensions (LxWxH) 1450 mm x 800 mm x 1350 mm (31.5 x 57.1 x 53.1 in.)
Weight 112kg (247 ibs.)

Category: Tag:

Product Description

Azon RAZOR combines award-winning print technology with a new, faster, stronger and power adjustable LED curing system. With new, more powerful LED curing system we can control different curing power and generates minimal heat. Because of that RAZOR can print directly onto PET, ABS, polycarbonate, TPU, wood, leathers and other soft materials. Seven automatic modes are available, allowing users to instantly choose the proper settings for their most popular applications which dramatically increases the printer’s productivity and overall performance.
The RAZOR prints directly on objects measuring up to 18,5 inches in length, 13 inches in width and 8 inches in height. A built-in laser pointer allows for easy setup with the auto adjustable distance mode designed for flawless printing around the surface of curved objects where the variance in distance is 2 mm or less. Advanced print head technology ensures photo quality output up to 2880 x 1440 dpi.
The Q UV RAZOR features AZON-UV ink in CMYK, white and varnish for exceptional color gamut, bright, saturated white images and text, and premium varnishing and embossing effects. Varnish or Gloss AZON-UV ink simulates varnishing and embossing effects, or can be layered into interesting patterns and textures in both gloss and matte finishes.

ADDITIONAL ATTACHEMENTS:

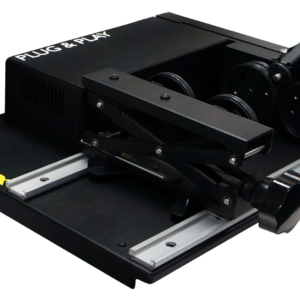

Rotary for print cylindrical items
